Carbon

6

C

12.0107(8)

  • Name: Carbon
  • Symbol: C
  • Atomic number: 6
  • Atomic weight: 12.0107(8)
  • CAS Registry ID: 7440-44-0
  • Group name: (none)
  • Period number: 2
  • Block: p-block
  • Switch:
  • Compare Element

Description

Carbon is a nonmetal that has an atomic weight of 12.0107. Carbon has a melting point of 6381 °F, and a boiling point of 7281 °F. Carbon is one of the most abundant elements in the universe, and is present in all living organisms on earth. The most frequent uses of carbon include: carbon as fuel in the form of coal, as a lubricant in the form of graphite, as an isotope for dating archaeological artifacts, and of course in the form of diamonds for gemstones and in pieces for specialized cutting tools.

enlarge image


Isolation

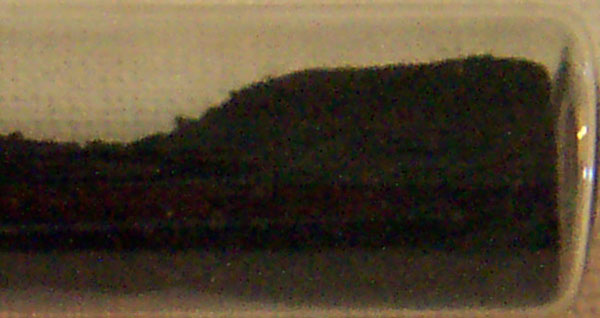

Pure carbon exists in the soft form of graphite, and in the hardest form of diamonds. Pure carbon can also be isolated or created through various techniques.

enlarge image

The process of air distillation can be used to isolate small amounts of carbon dioxide; however, this process is not used often to isolate carbon out of the carbon dioxide form because only very small quantities can be obtained from this process. Larger amounts of carbon dioxide are obtained from reactions between metal carbonates and acids such as calcium carbonate and sulfuric acid. Limestone can also produce carbon dioxide through heating the limestone to 1562 °F. The carbon can then be separated from the oxygen.

The large amounts of pure carbon that is available in nature in the form of graphite lead to unnecessary large scale isolations of carbon. Most carbon products are created by manipulating pure graphite to artificially create some of the more desired forms of pure carbon such as diamonds and buckminsterfullerene. These artificial forms of carbon are produced by methods using heat, lasers, and enormous amounts of pressure.


General
Name Carbon
Symbol C
Number 6
Chemical series nonmetals
Group 14
Period 2
Block p
Appearance black (graphite)
Standard atomic weight 12.0107(8) g·mol−1
Electron configuration 1s2 2s2 2p2
Electrons per shell 2, 4
Atomic properties
Crystal structure hexagonal
Oxidation states 4, 2 (mildly acidic oxide)
Electronegativity 2.55 (Pauling scale)
Ionization energies 1st: 1086.5 kJ·mol−1
(more) 2nd: 2352.6 kJ·mol−1
(more) 3rd: 4620.5 kJ·mol−1
Atomic radius 70 pm
Atomic radius (calc.) 67 pm
Covalent radius 77 pm
Van der Waals radius
Physical properties
Phase solid
Density (near r.t.) (graphite) 2.267 g·cm−3
Liquid density at m.p.
Melting point ? triple point, ca. 10 MPa
Boiling point ? subl. ca. 4000 K (3727 °C, 6740 °F)
Critical point
Heat of fusion (graphite) ? 100 kJ·mol−1
Heat of vaporization ? 355.8 kJ·mol−1
Heat capacity (graphite) (25 °C) 8.517 J·mol−1·K−1
Miscellaneous
Magnetic ordering diamagnetic
Electrical resistivity
Thermal conductivity (graphite) (300 K)
Thermal expansion
Speed of sound (thin rod)
Young's modulus
Shear modulus
Bulk modulus
Poisson ratio
Mohs hardness (graphite) 1-2
Vickers hardness
Brinell hardness
CAS registry number 7440-44-0
